IR Light 850nm Portable Digital Microscope for Crime Investigations
Museums and Restoration
Quick Details
With special 850nm IR light built in, this model is wide used in
Antique Market.
Model DM022D IR Digital Microscope, 2MP, 10x-200x, 4 white LEDs, 4
IR LEDs light. For scientific and medical applications where IR
light is required. From white light toIR light or from IR light to
white light, just to turn the LED dimmer and you will get what you
want.
The light source of this model is white white light+IR light
individually. If there is the requirement of 3 lights(white
light+UV light+IR light) together, let us know, we would offer the
solution accordingly!
Main Features
* Light source is dimmable LED ring illuminator included with 4
adjustable white LEDs + 4 adjustable IR LEDs (Model name: DM022D
IR850nm)
* CMOS sensor type is 1/3" CMOS Image Sensor, with resolution 2M
pixels (1920*1080), you can get the clear captures and videos with
this sensor type.

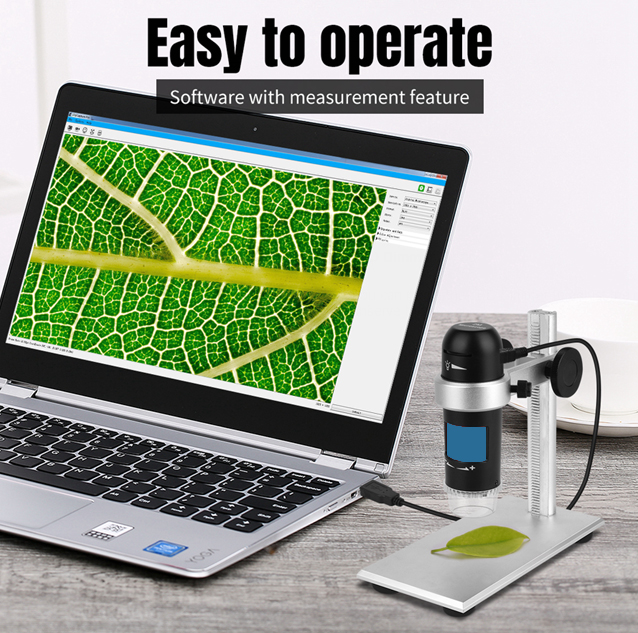

* Compatible with computer, both Macbook and Windows PC are
available, with powerful software for measuring, capturing and
recording.
* Optional resolution is from VGA, 720P, 1080P
* PC Software supports four living windows concurrently, user with
special applications can support to use 4 microscope seeing the
living at the same time.
* PC Software with 16 optional languages can reach most of the uses
in the worldwide.
PRODUCT SPECIFICATIONS
MODEL | Model Name | DM022D(850nm) |
| Connection | USB 2.0 |
OPTICS | Polarizer | Yes |
| Magnification | 10x~200x |
| Lens type | Optical glass |
| Focus range | Manual focus 0~110mm |
| Illumination | 8 adjustable LED(4pcs IR+4pcs white) |
SENSOR | Sensor type | CMOS |
| Size | 2 megapixel |
| Resolution | 2M pixels (1920*1080) |
| Frame rate | 30 fps at 2MP output |
FEATURES | Software | DigiCapture Pro for
Windows/MacOS |
| Measurement function | Yes |
| Certification | CE/FCC/RoHS |
PHYSICAL | Dimensions | 18*34*30cm |
| Gross weight | 0.2kg |
| Stand | Comes with metal stand |
