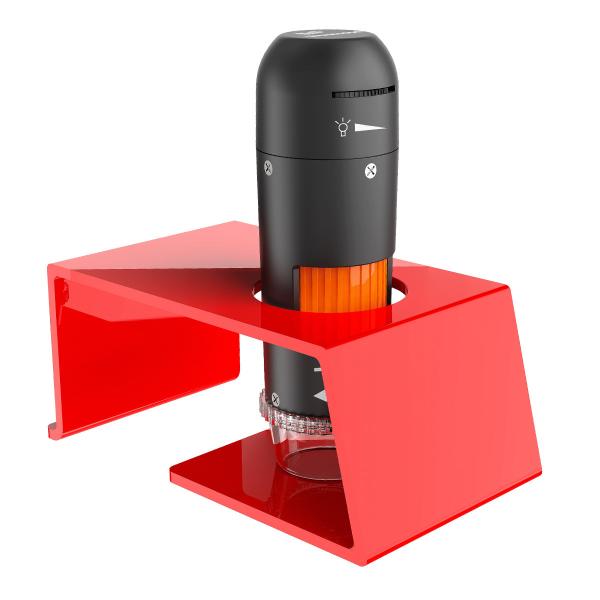

Polarizing Portable Digital Microscope with High Resolution 5MP
Sensor
Quick Details
Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs
with brightness adjustable are good for any inspection enviornment.
With this unit you may see a unique & “bigger” world. All those
excellent features make it a good aid for your daily inspection on
tiny objects.
With polarizer to reduct the reflection, useful for observing
objects with shiny surface like metak, diamond, jewelry etc.,
Main Features
With Measurement function
PC Software support four display concurrently
Compatible with Windows and Mac
* PC Software supports four living windows concurrently, user with
special applications can support to use 4 microscope seeing the
living at the same time.
* PC Software with 16 optional languages can reach most of the uses
in the worldwide.
* Light source is the dimmable LED ring illuminator (8pcs SMT White
LED).
* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP,
1.3MP.
PRODUCT SPECIFICATION
MODEL
Model Name
DM022C
Connection
USB 2.0
OPTICS
Polarizer
Yes
Magnification
Real 10x~250x(based on 21 inch Display)
Lens type
Optical glass
Focus range
Manual focus 0~110mm
Illumination
8 adjustable white LED
SENSOR
Sensor type
CMOS
Size
5 megapixel
Resolution
2590*1944
Frame rate
25 fps at 5MP output; 35 fps at 2MP output
FEATURES
Software
DigiCapture Pro for Windows/MacOS
Measurement function
Yes
Certification
CE/FCC/RoHS
PHYSICAL
Dimensions
18*34*30cm
Gross weight
0.2kg
Stand
Comes with metal stand
PACKING METHOD
Neutral product with colorful giftbox, 16pcs per carton.
