RS232 JPEG OV528 Communication Protocol Serial UART Interface
Camera Module For remote unattended photography
1: This 0.3MP RS232 OV528 Communication Protocol serial interface
camera module with Lens F:2.8mm IR:850nm . 2: The 0.3MP rs232 serial interface camera module with Limited One-Year Warranty. 3: The serial interface camera module with rs232 output. 4: The camera module baud rate from 9600 to 115200bps.
Product Specification:
Model
Model Name
CA025M-RS232-5V
Features
Interface
RS232
Working Power
DC 5V
Working Current
About 70mA (Standby: 50mA)
Image sensor
OV7725 1/4" CMOS Image Sensor
Pixels
0.3 Megapixel
Image Compression
JPEG
Baud Rate
9600 to 115200bps
Lens
F:2.8mmIR:850nmFOV:100°
Image Resolution
VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Advantage
White Balance
Automatic
Exposure
Automatic
Auto Gain Control
Automatic
Working Temperature
-10 to 70 degree Celsius
Warranty
Limited One-Year Warranty and Lifetime Product Support
Software
JPEG Serial Port Camera Test Software
Yes
User Manual OV528 Protocol
Yes
Communication protocol
OV528
Package details

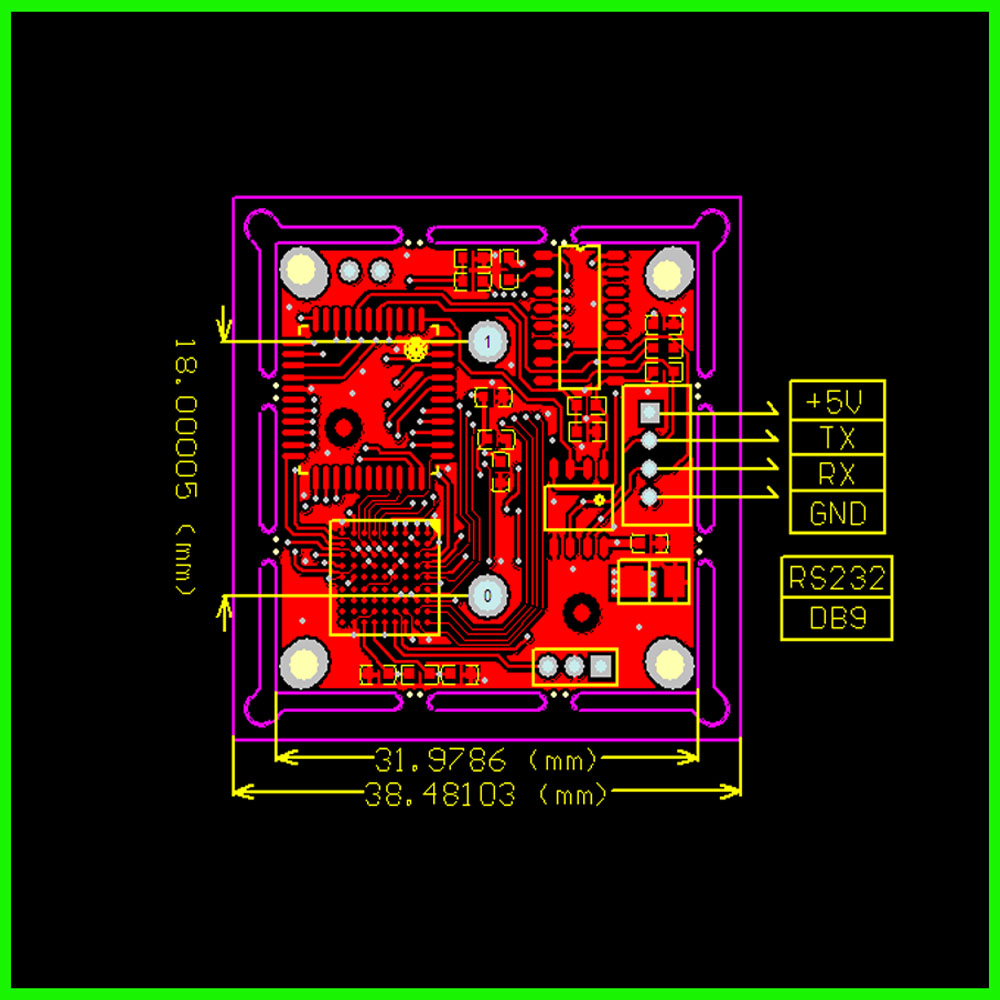

Size
38mm*38mm / 32mm*32mm
Gross Weight
0.01KG
Package Included
1 x RS232 JPEG Camera Module
Product Advantages:
1: This 0.3MP rs232 serial camera module is used in GPS positioning
and taking pictures. 2: The RS232 JPEG OV528 Communication Protocol Serial UART Interface
Camera Module For remote unattended photography. 3: The rs232 serial camera module with OV528 Communication protocol with
JPEG Serial Port Camera Test Software.
