LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification

    Buy cheap LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification from wholesalers

    Buy cheap LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification from wholesalers
    • Buy cheap LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification from wholesalers
    • Buy cheap LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification from wholesalers

    LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification

    Ask Lasest Price
    Brand Name : Neutral/Customization
    Model Number : DM042
    Certification : CE/FCC/RoHS
    Price : 68~80
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50000pcs/month
    Delivery Time : 5~35 working days
    • Product Details
    • Company Profile

    LCD 12MP High Resolution Digital Microscope Screen 1200x Magnification

    LCD 12MP High Resolution Digital Microscope with 1200x Magnification


    HIGH RESOLUTION DIGITAL MICROSCOPE DESCRIPTION

    Main Features:

    * High magnification: real 250x and up to 1200x by digital zoom

    * High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom

    * Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond, jewelry, metal etc.,


    DM042 is the polarizer type LCD digital microscopes that with high resolution and multiple output methods for various applications. It supports for 4 kinds of connection: live viewing, capture, recording by the device itself; through HDMI cable to output live into HDMI monitor; through TV cable to output live into TV monitor; through USB cable connecting to Windows, Mac computes or laptop and do some capture, store images and videos, measurements with attached PC software. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.


    HIGH RESOLUTION DIGITAL MICROSCOPE SPECIFICATIONS

    MODEL

    Model Name

    DM042


    Connection

    USB 2.0 to PC/HDMI port to monitor/TV port to monitor

    OPTICS

    Polarizer

    Yes


    Magnification

    Real 10x~250x(based on 21 inch Display)


    Lens type

    Optical glass


    Focus range

    Manual focus 0~110mm


    Illumination

    8 adjustable white LED

    SENSOR

    Sensor type

    CMOS


    Size

    5 megapixel


    Resolution

    2590*1944


    Frame rate

    25 fps at 5MP output;
    35 fps at 2MP output

    FEATURES

    Software

    DigiCapture Pro for
    Windows/MacOS


    Measurement function

    Yes


    Certification

    CE/FCC/RoHS

    PHYSICAL

    Dimensions

    18*34*30cm


    Gross weight

    0.2kg


    Stand

    Comes with metal stand


    HIGH RESOLUTION DIGITAL MICROSCOPE APPLICATIONS:

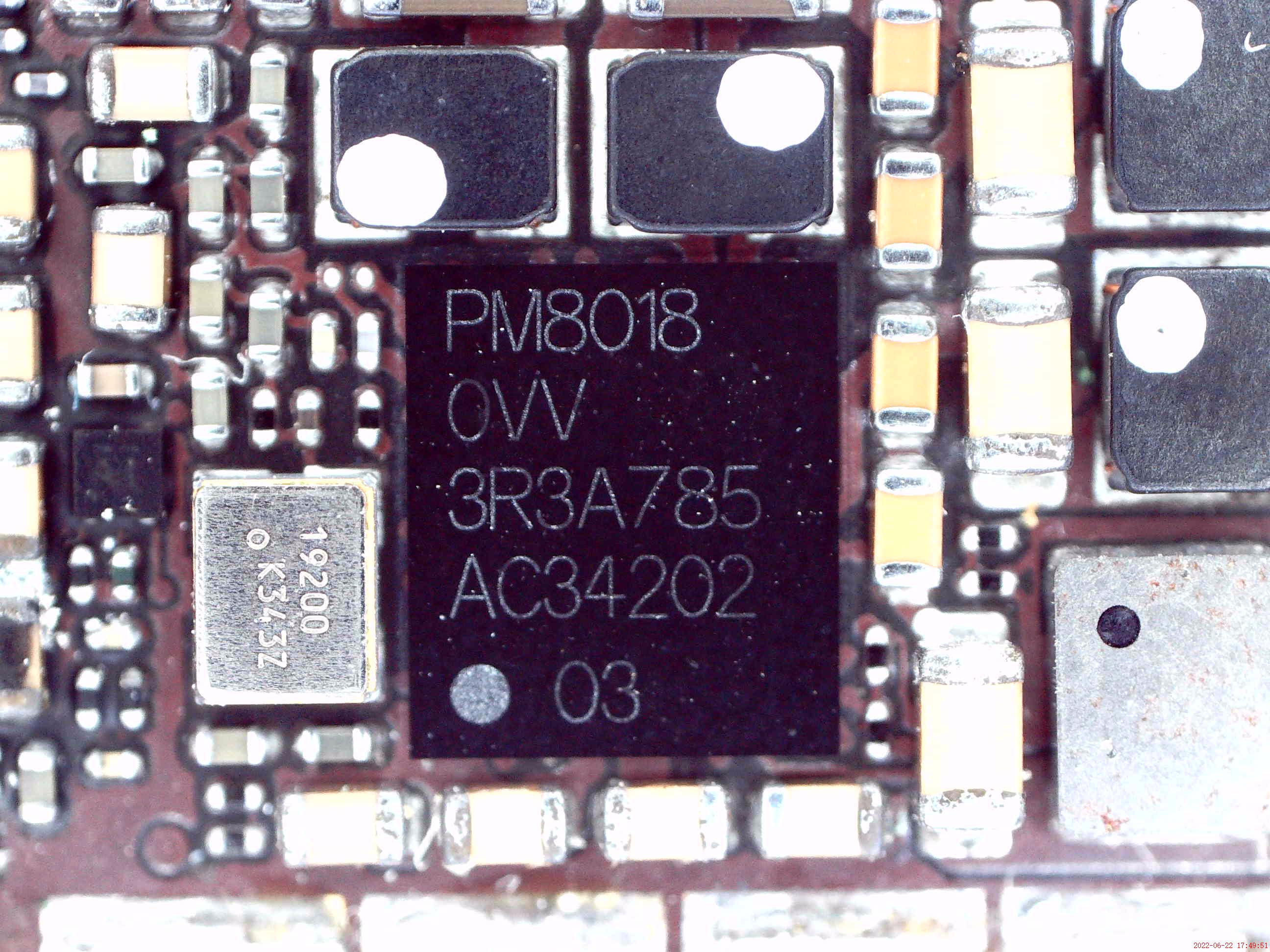

    • Industry: PCB Repairing / Manufacturing / Engineering integration / Quality Control / Assembly / Printing

    • Health care: Dermatology Skin Inspection / Trichology Hair and Scalp Inspection / Iridology /Nail Circulation


    Packing ways:

    Neutral product with colorful giftbox, 16pcs per carton.

    According to export standard packing.
